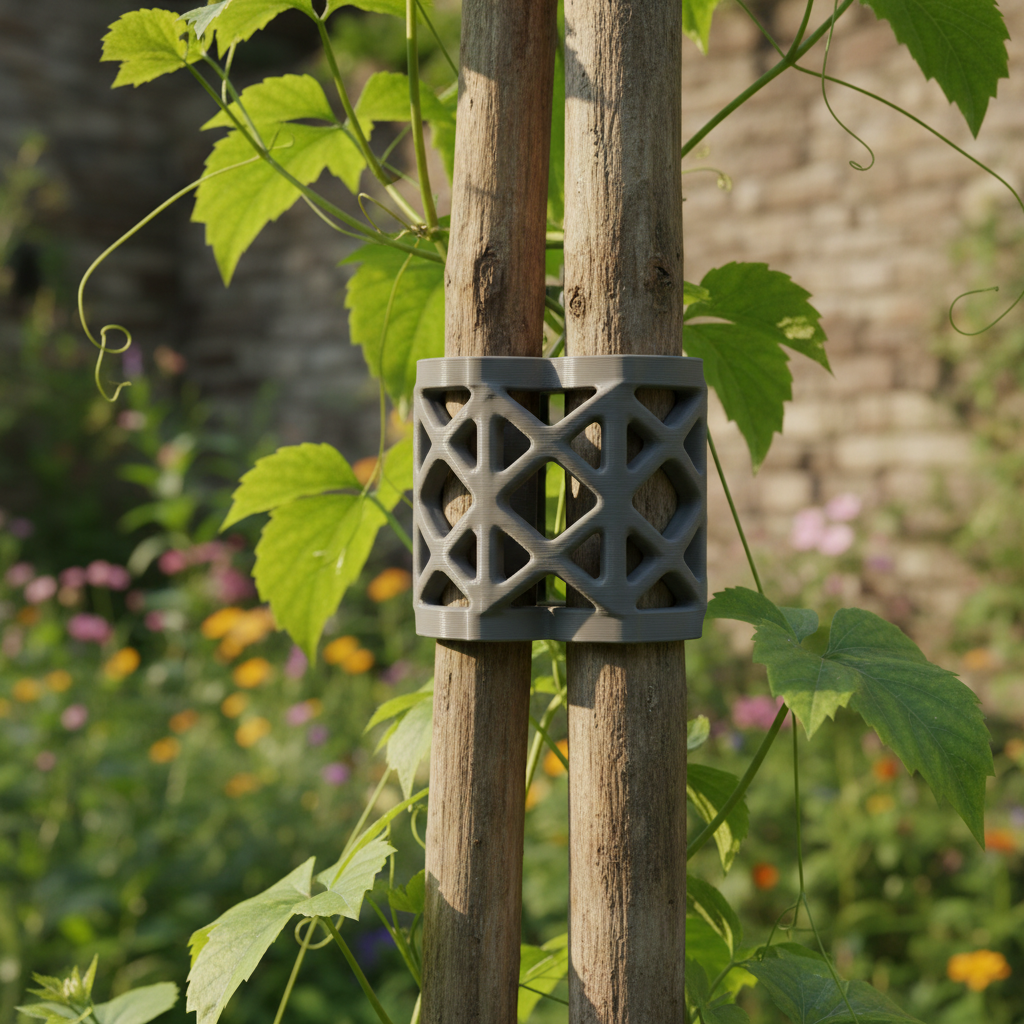

Improving UV Resistance for 3D Printed Trellis Connectors

The Challenge of Outdoor Durability in 3D Printed Garden Structures

For many of us in the gardening community, 3D printing offers a revolutionary way to customize trellis systems, vine supports, and specialized connectors. However, the transition from indoor prototyping to functional outdoor application often reveals a harsh reality: the sun is a relentless adversary. We have observed that many standard 3D printed parts, while appearing robust on the build plate, fail prematurely when exposed to the elements.

The primary culprit is photochemical degradation—a process where ultraviolet (UV) radiation breaks down the molecular chains of the polymer. This leads to surface crazing, color fading, and eventually, catastrophic structural failure. When a trellis connector supporting a heavy tomato vine or a climbing rose fails, it isn't just a loss of a plastic part; it’s a risk to the plant and the entire garden structure.

In this guide, we will analyze how to select the right materials and apply specific technical optimizations to ensure your 3D printed connectors withstand years of exposure rather than just a single season.

Understanding the Mechanism of UV Degradation

To solve the problem of sun-induced failure, we must first understand what is happening at the molecular level. According to the Purdue University 3D Printing Glossary, Fused Deposition Modeling (FDM) creates parts by layering thermoplastic. These layer lines are inherently the weakest points of any print, acting as microscopic "valleys" where UV radiation can penetrate deeper into the structure.

UV radiation (specifically UV-A and UV-B) possesses enough energy to break the carbon-carbon bonds in many common plastics like PLA and ABS. As these bonds break, the plastic becomes brittle. Based on our observations of functional garden components over several seasons, standard PETG connectors often show surface crazing—fine cracks on the surface—within 6 to 9 months of full sun exposure.

Material Selection: Moving Beyond Standard Filaments

The most effective way to combat UV degradation is to start with a material that is chemically resistant to radiation. While many beginners start with PLA, its low glass transition temperature and poor weather resistance make it unsuitable for garden use.

The Gold Standard: ASA (Acrylonitrile Styrene Acrylate)

ASA was specifically developed to be a weather-resistant alternative to ABS. It replaces the butadiene component of ABS with an acrylic ester, which is significantly more stable under UV exposure. In our field testing, ASA connectors typically last 2 to 3 seasons in full sun before showing significant embrittlement.

For specialized applications like lightweight trellis systems, we recommend ASA-Aero Filament. This material uses "on-demand foaming" technology, which allows you to adjust the density of the part. By maintaining a high-temperature print (250-260°C), you ensure maximum layer fusion, which is critical for preventing UV rays from penetrating the internal structure of the connector.

The High-Performance Alternative: PETG-CF

While standard PETG is more UV-resistant than PLA, it still degrades over time. However, carbon fiber reinforced variants like PETG-CF offer a different type of protection. The addition of chopped carbon fiber not only increases the rigidity and dimensional stability of the part—essential for connectors under constant tension—but the fibers themselves can act as a physical barrier, absorbing and scattering UV radiation before it can reach the core polymer chains.

As noted in the ScienceDirect review on carbon fiber reinforced polymers, the integration of these reinforcements can significantly enhance the mechanical performance of FDM parts in industrial-style applications.

Structural Design and Optimization for Longevity

Material selection is only half the battle. How you design and slice your part determines how it handles the physical stress of a growing garden.

The 30-40% Safety Heuristic

For high-load applications, such as connectors supporting heavy grapevines or heavy-duty trellises, we recommend designing with a 30-40% higher wall thickness than your calculated minimums. This "over-engineering" accounts for the inevitable material degradation that occurs over years of exposure. If a connector needs to be 2mm thick to support a load today, making it 2.8mm ensures it still has structural integrity after the outer 0.5mm has been compromised by UV crazing.

Optimizing Wall Thickness and Orientation

We have found that a minimum wall thickness of 0.8mm to 1.0mm is necessary for ASA parts to provide an adequate "sacrificial layer" against the sun. Furthermore, orientation is paramount. You should always print your connectors so that the layer lines are parallel to the primary stress vectors. If the load is pulling the connector apart, you do not want it pulling against the layer adhesion; you want it pulling against the continuous strands of the filament.

Advanced Post-Processing: The Multi-Layered Shield

Even the best materials can benefit from additional protection. If you are building a permanent garden structure intended to last five years or more, post-processing is not optional.

The Automotive Clear Coat Strategy

The most effective secondary protection we have identified is the application of an automotive-grade, UV-blocking clear coat. These coatings are designed to protect car paint from the same radiation that destroys plastic. For the best results, apply the coating within 24 hours of printing. This ensures the best chemical bond before any moisture or dust can settle into the layer lines.

Annealing for Stress Relief

Internal stresses from the printing process can make a part more prone to cracking when environmental stressors (like heat and UV) are added. For materials like PETG-Tough Filament, which is already modified for high impact resistance, a slow annealing process in a controlled environment can further stabilize the part.

For more information on selecting the right material for high-stress applications, you might find our guide on choosing filament for wear-resistant sliding connectors helpful, as many of the same mechanical principles apply.

Optimizing the Printing Environment for Outdoor Success

The durability of your trellis connector is often decided before it ever touches a garden stake. The environment inside your printer is just as important as the environment in your garden.

The Importance of a Heated Chamber

ASA is notorious for warping and poor layer adhesion if printed in an open-air environment. We have observed that printing ASA in an enclosed chamber maintained at 50-60°C yields significantly better results. This ambient heat allows the layers to bond more effectively and reduces the internal "frozen-in" stresses that lead to premature cracking under the sun.

Moisture Management

Both ASA and PETG are hygroscopic, meaning they absorb moisture from the air. According to the UTHSCSA LibGuides on 3D Printing Filaments, moist filament can lead to "popping" during extrusion, which creates microscopic voids in the print. These voids are entry points for UV radiation and water, leading to internal rot and faster degradation.

We recommend using a dedicated dryer. For high-performance materials like PETG Rapido, drying at 60-65°C for 5-8 hours before printing is a standard operational baseline in our workshop.

Summary of Actionable Strategies

Building long-lasting garden structures requires a shift from "hobbyist" printing to "functional engineering." By combining UV-stable materials with smart design and protective coatings, you can create connectors that rival industrial counterparts.

• Prioritize ASA: Use ASA-Aero Filament for its inherent chemical resistance to UV.
• Over-Engineer: Apply a 30-40% thickness buffer to ensure structural integrity as the surface ages.
• Optimize Thermal Settings: Print in an enclosed chamber at 50-60°C to maximize layer adhesion.
• Seal the Surface: Use automotive UV-blocking clear coats to add a secondary layer of protection.
• Dry Your Filament: Maintain humidity below 15% to prevent structural voids.

For those moving from simple garden clips to more complex systems, understanding the trade-offs between materials is vital. You may want to compare your options further in our deep dive on ABS vs ASA for outdoor structural mounts.

Disclaimer: This article is for informational purposes only. The longevity of 3D printed parts depends on numerous variables including local UV index, specific printer calibration, and load conditions. Always test critical structural components before full-scale implementation.
