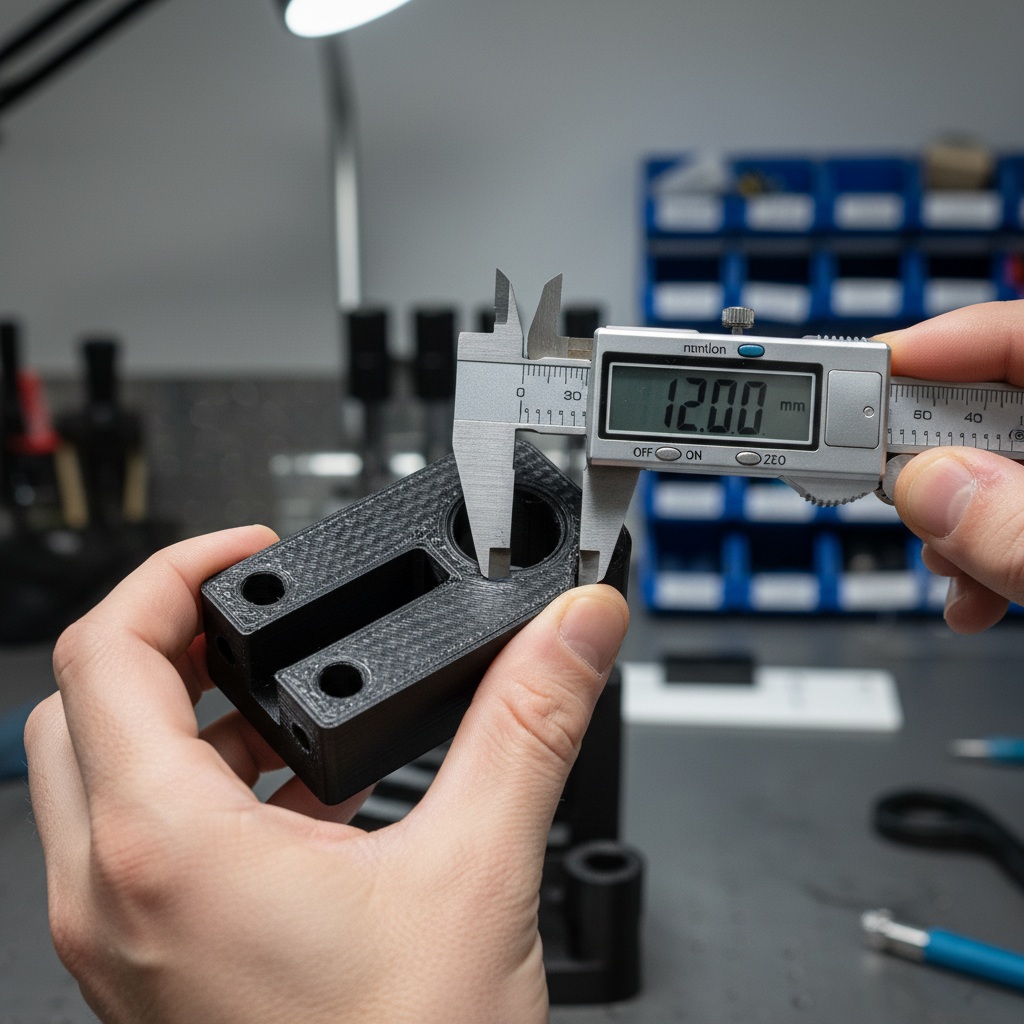

How to Fix Loose Pivot Points in 3D Printed Hinge Repairs

Mastering the Fit: Why Pivot Points Fail in 3D Printed Repairs

Transitioning from printing PLA trinkets to producing functional replacement parts is a rite of passage for any serious maker. However, the stakes are higher when you are repairing a broken cabinet hinge or a heavy box lid. In these scenarios, a "near miss" in dimensional accuracy results in a loose, wobbling joint or a squeaky mechanism that feels unprofessional.

We often observe that the most common frustration in functional printing isn't the print quality itself, but the mechanical fitment after assembly. A hinge that looks perfect on the build plate can quickly become a failure point if the pivot pin doesn't seat with the correct amount of friction. Based on our pattern recognition from troubleshooting thousands of functional repairs, the secret to a professional-grade hinge lies in understanding the interplay between material shrinkage, print orientation, and "two-stage" clearance design.

The Physics of Clearance: Why "Exact" Dimensions Lead to Failure

One of the first hurdles a prosumer faces is the realization that a 10mm hole in CAD will almost never accept a 10mm pin in reality. This is due to several factors: the "squish" of the first layer, the expansion of the thermoplastic as it leaves the nozzle, and the subsequent contraction as it cools.

According to the Purdue University Libraries 3D Printing Glossary, FDM (Fused Deposition Modeling) relies on melting and extruding plastic, a process inherently prone to thermal variance. When you are working with engineering-grade materials like ABS or ASA, this variance is amplified.

The Problem of "Ovalization"

When you print a hole horizontally (with the hole's axis parallel to the build plate), the top of the arc tends to sag slightly without support, while the sides may bulge. This creates an "oval" rather than a true circle. Conversely, vertical holes (axis perpendicular to the plate) exhibit much better circularity but are limited by the layer adhesion strength of the part. If your hinge will face significant shear force, you are often forced to print it horizontally, meaning you must compensate for that ovalization in your design.

Material-Specific Compensation: A Data-Driven Approach

Not all filaments behave the same way during the cooling phase. A common mistake we see in small-shop environments is using a "global" clearance value for every project. This leads to parts that are too tight in ABS and too loose in PETG.

The Shrinkage Factor

Engineering materials like ASA Filament and ABS are prized for their heat resistance and durability, but they come with a "shrinkage tax." These materials typically shrink by 0.5% to 0.8% as they transition from their glass transition temperature to room temperature.

For a standard 8mm pivot pin, we have found that modeling the hole at 8.15mm to 8.2mm is the "sweet spot" for a smooth, non-wobbling fit. This accounts for both the material's natural contraction and the mechanical tolerances of the motion system.

Methodology Note: These ranges are estimated based on common practice in enclosed printing environments (40-70°C chamber temperature). Without an enclosure, shrinkage values can spike, leading to warping that renders these clearances useless.

If you are working on outdoor repairs, ASA Filament is often the superior choice due to its UV stability. However, for specialized applications like drone components or lightweight hatches, ASA-Aero Filament offers "on-demand foaming" technology. This allows you to reduce the density of the part by up to 50%, though it requires careful calibration of the foaming ratio to maintain dimensional accuracy in the pivot housing.

Advanced Design: The "Two-Stage" Clearance Strategy

Experienced repair specialists often move beyond simple uniform holes. If a hinge is long, minor layer misalignments or slight Z-wobble can cause a pin to bind halfway through insertion.

To solve this, we recommend a "two-stage" clearance design:

1. Bearing Surfaces: At the specific points where the hinge rotates, use a tight clearance (e.g., 0.1mm to 0.15mm) to ensure there is no "slop" or play in the joint.
2. Relief Zones: In the non-rotating sections or the center of a long barrel, increase the clearance to 0.3mm or 0.4mm.

This strategy ensures that the hinge feels tight and high-quality while remaining easy to assemble. It also provides a small reservoir for lubrication, which is essential for long-term durability in functional parts.

Orientation and Strength Trade-offs

As noted in the UTHSCSA LibGuides on 3D Printing Filaments, the orientation of your print significantly impacts its mechanical properties. For a pivot point:

• Vertical Printing: Results in the best circularity. The pin will rotate smoothly. However, the "ears" of the hinge are now prone to snapping off because the force of the door opening acts to peel the layers apart.
• Horizontal Printing: Offers maximum strength against the door's weight. The layers run the length of the hinge, making it very difficult to break. The trade-off is the "ovalization" mentioned earlier, which must be tuned in your slicer's "XY Size Compensation" or handled at the CAD level.

For those struggling with the trade-off between strength and fit, we often suggest checking our guide on picking the right filament for hinges to see how material properties can offset orientation weaknesses.

The Role of Engineering Materials in Professional Repairs

When a repair must last for years rather than weeks, standard materials often fall short. This is where carbon-fiber reinforced polymers (CFRP) become invaluable.

PA12-CF: The Industrial Standard for Hinges

PA12-CF Filament is a high-performance Nylon 12 reinforced with carbon fiber. According to research published in ScienceDirect, adding carbon fiber to polymers significantly improves tensile strength and dimensional stability.

For hinge repairs, PA12-CF Filament offers a critical advantage: self-lubrication. Nylon has a naturally low coefficient of friction. When combined with the rigidity of carbon fiber, you get a hinge that does not deform under load and operates smoothly without grease. Furthermore, the fiber mesh structure helps release internal stress during printing, which means less warping and more predictable clearances compared to standard Nylon.

ABS Rapido Metal: For Aesthetic Durability

In some cases, the repair needs to match the look of existing hardware. ABS Rapido Metal Filament provides a metallic texture without the need for post-print painting. Because it is an ABS-based material, it maintains the durability required for functional use while offering a professional finish for cabinet or furniture repairs.

Post-Processing: The Final 5% of Precision

Even with perfect CAD settings, post-processing can alter your fit. A key insight from professional repair benches involves the impact of heat treatment.

The Annealing Effect

Annealing parts—heating them to just below their glass transition temperature—can significantly increase part strength by relieving internal stresses. However, it also causes a secondary shrinkage.

• Observation: Testing has shown that annealing ABS parts at 80°C for 2 hours can reduce hole clearance by an additional 0.05mm to 0.1mm.
• Actionable Tip: If you plan to anneal your parts for maximum strength, you must "over-size" your holes by an extra 0.1mm in CAD, or perform the final fitting (such as reaming the hole with a drill bit) after the heat treatment is complete.

Moisture Management

Materials like Nylon are hygroscopic. As noted in the PMC Review on 3D Printing Materials, moisture absorption can lead to dimensional changes of up to 1%. If you print a hinge with "wet" PA12-CF Filament, the steam created in the nozzle will cause bubbling and internal voids, leading to a "fuzzy" hole that will bind on the pin. Always dry your high-performance filaments at 80-100°C for at least 4-6 hours before attempting a precision repair.

Summary of Best Practices for Hinge Fitment

Creating a reliable 3D printed hinge is a science of managing tolerances. By moving away from "one-size-fits-all" settings and adopting material-specific compensations, you can produce repairs that rival injection-molded parts.

• Compensate for Shrinkage: For ABS/ASA, design holes 0.2mm larger than the pin. For PETG, 0.15mm is usually sufficient.
• Use Two-Stage Clearances: Keep 0.1mm at the rotation points and 0.4mm in the "dead zones" to prevent binding.
• Prioritize Orientation: Print horizontally for strength, but use "XY Size Compensation" in your slicer to fix the resulting ovalization.
• Select the Right Material: Use PA12-CF Filament for high-wear industrial joints or ASA Filament for outdoor durability.
• Post-Process Wisely: If annealing, account for the extra 0.1mm of shrinkage that occurs during the stress-relief cycle.

By following these principles, you reduce the need for multiple "test prints" and ensure your functional repairs work correctly on the very first attempt. For more detailed guides on specific household fixes, explore our articles on fixing broken cabinet hinges or troubleshooting fit issues in door hardware.

Disclaimer: This article is for informational purposes only. Mechanical repairs to load-bearing structures should be approached with caution. Always test your 3D printed parts in a non-critical environment before full implementation.
