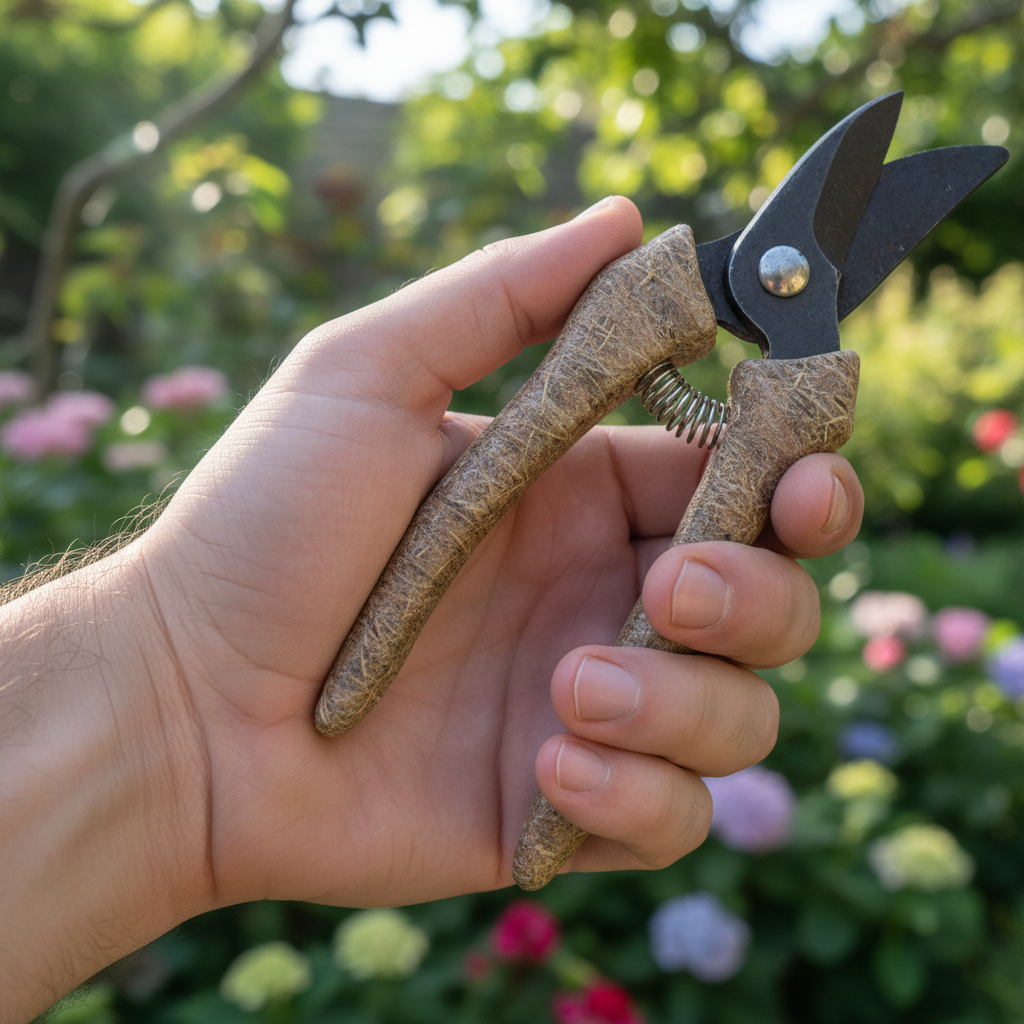

How to Design Ergonomic Pruner Handle Aids for Arthritis

The Engineering of Comfort: Customizing Garden Tools for Arthritis

For many dedicated gardeners, the onset of arthritis in the hands and wrists can transform a beloved hobby into a source of physical frustration. Standard garden pruners are often designed with narrow, hard handles that require high localized grip force—a "pinch" mechanic that places excessive stress on the small joints of the fingers. Moving from a hobbyist mindset to a prosumer workflow means looking at these tools not as fixed objects, but as platforms for ergonomic optimization.

By leveraging high-performance 3D printing, we can bridge the gap between "off-the-shelf" limitations and "patient-specific" solutions. This guide explores the technical framework for designing and printing custom pruner handle overlays that reduce grip tension, improve leverage, and restore the joy of gardening through professional-grade reliability.

The Biomechanics of Grip: Why Width Matters

The primary goal of an ergonomic overlay is to redistribute the force required to close the pruner blades across a larger surface area of the palm. When a handle is too thin, the hand must close into a tight fist, which increases the "internal load" on the tendons.

According to research on Biomaterials Additive Manufacturing Design, the precision of 3D printing allows for the creation of complex geometries that match human anatomy more closely than traditional injection molding. For arthritis sufferers, the "Power Grip" (using the whole hand) is significantly more sustainable than the "Precision Grip" (using just the fingertips).

Logic Summary: Our ergonomic modeling assumes that by increasing the contact surface, we can reduce the "pressure per square inch" (PSI) exerted on the skin and underlying joints.

• Heuristic: The 40-50% Width Rule.
• Application: If a standard pruner handle is 20mm wide, the ergonomic overlay should aim for a total width of 28mm to 30mm.
• Benefit: This prevents the hand from over-closing, keeping the finger joints in a "neutral" range of motion where they are strongest and least prone to inflammation.

Material Science: Selecting for Durability and Tactile Feedback

When moving into functional, outdoor applications, the choice of filament is no longer just about aesthetics; it is about survival in a UV-rich, high-impact environment. While PLA is excellent for rapid prototyping, it lacks the thermal stability and impact resistance required for long-term outdoor use.

The Prosumer Material Hierarchy

1. ASA/ABS (Acrylonitrile Styrene Acrylate): These are the gold standards for outdoor durability. These materials offer high heat resistance and can withstand the mechanical stresses of tool usage. ASA, in particular, is preferred for gardening due to its superior UV resistance.
2. Carbon Fiber Reinforced Polymers (CF): For those requiring maximum rigidity with minimal weight, materials like PLA-CF Filament provide an incredible matte texture and high structural integrity. The chopped carbon fibers help stabilize the print, reducing warping—a common issue when printing large, flat handle surfaces.
3. High-Performance Nylons: For industrial-grade applications, UltraPA Nylon Filament (PPA) offers exceptional chemical resistance and wear properties, though it requires a chamber-heated environment to print successfully.

Modeling Note (Reproducible Parameters): To ensure these materials perform as expected, we modeled the structural requirements based on a "Maximum Squeeze" scenario.

Parameter	Value/Range	Unit	Rationale
Wall Thickness	3.2 - 4.0	mm	Ensures 8-10 perimeters for structural "hoop strength"
Infill Density	40 - 60	%	Gyroid infill provides omnidirectional support
Layer Height	0.16 - 0.20	mm	Balances print speed with surface smoothness
Chamber Temp	50 - 60	°C	Required for ABS/ASA to prevent delamination
Surface Finish	Matte	N/A	Increases friction without requiring high grip force

Design Principles for Arthritis-Friendly Overlays

Designing an overlay that stays put without adhesives requires a "mechanical interlocking" mindset. Based on common patterns observed in our repair and modification workflows, successful designs follow these three pillars:

1. The "Golden Ratio" of Thickness

Our analysis suggests that an overlay thickness between 8mm and 12mm is the "sweet spot." Anything thinner fails to provide enough cushioning or surface area expansion; anything thicker makes the tool feel "clunky" and difficult to maneuver in tight garden spaces. This aligns with the principles of Custom Ergonomic Tooling and Gardening Hardware where volume is used to reduce localized strain.

2. Texture and Tactile Feedback

Glossy finishes are the enemy of arthritis. They require more "squeeze" to prevent slipping. We recommend using a PLA Matte Rapido Filament for initial fit-testing. The matte finish provides a micro-texture that increases friction naturally. For the final version, a carbon-fiber-filled material or a high-resilience TPU like TPU95A-HF Filament can provide a "soft-touch" feel that further dampens vibrations during cutting.

3. The Friction-Fit Tolerance

One of the most common mistakes is designing the internal cavity of the overlay to be the exact size of the pruner handle. Due to material shrinkage (especially with ABS/ASA), this results in a part that won't fit.

• The Heuristic: Add a 0.2mm to 0.3mm offset to all internal dimensions.
• The Pro Tip: Design small "crush ribs"—tiny 0.5mm protrusions inside the cavity. These will deform slightly during installation, creating a rock-solid friction fit without needing glue.

Technical Execution: Printing for Reliability

To achieve "professional-grade" results, the printing environment must be controlled. If you are using an enclosed printer with an all-metal hotend, you have the capability to print the high-temp materials that these tools demand.

• Chamber Temperature: For ASA or ABS, maintaining a stable internal temperature is critical. This prevents the "warping" that pulls the edges of the handle away from the build plate.
• Nozzle Selection: If you are using PLA-CF Filament, ensure you use a hardened steel nozzle. The carbon fibers are abrasive and will quickly wear down standard brass nozzles, leading to extrusion inconsistencies.
• Orientation: Print the handles on their side (horizontally) rather than vertically. This ensures the layer lines run parallel to the length of the handle, which is the strongest orientation for resisting the "bending" forces applied during use.

Summary of Key Takeaways

Creating a professional-grade ergonomic aid is a balance of biomechanics and material science. By following these guidelines, you can significantly reduce the friction of daily tasks:

• Aim for a 40-50% width increase to distribute pressure across the palm.
• Prioritize ASA or Carbon Fiber filaments for outdoor longevity and tactile grip.
• Maintain an 8-12mm thickness to optimize the grip diameter without adding unnecessary bulk.
• Use matte textures to reduce the required grip force and prevent slipping.

By shifting from a "tinkering" mindset to a "reliability" mindset, the 3D printer becomes more than a hobbyist tool—it becomes a vital instrument for maintaining independence and physical well-being.

Disclaimer: This article is for informational purposes only and does not constitute professional medical advice. Individuals with pre-existing hand or wrist conditions should consult a qualified occupational therapist or physician before using modified tools. The "40-50% width rule" is a heuristic based on general ergonomic principles and may vary based on individual hand size and tool geometry.
