Customizing Finger Splints: Scanning and Printing for Perfect Fit

Why print a splint at all

Off-the-shelf finger splints come in small, medium, and large. Your finger doesn't. A 3D printed splint can match the exact geometry of an individual finger joint, distribute pressure where it should go, and include ventilation holes that let skin breathe. Published research backs this up: a 2021 scoping review of 17 studies on 3D-printed hand orthoses found positive effects on hand function and patient satisfaction. A separate randomized controlled trial comparing 3D-printed PLA splints to conventional thermoplastic ones found comparable patient satisfaction scores.

The cost argument is hard to ignore, too. A published case series on 3D-printed finger splints for burn rehabilitation reported material costs under $1 per splint. Custom thermoplastic splints from an occupational therapist can run $50–200 per visit in the US. Even factoring in the printer and your time, the math works if you need more than one or two.

The real advantage, though, is iteration. Print one, try it, adjust, print again. The whole cycle takes an hour or two. That kind of rapid refinement is what makes printed splints competitive despite the longer per-unit production time.

One caveat before we go further: 3D-printed splints are personal assistive tools, not FDA-cleared medical devices. They haven't gone through 510(k) clearance. For acute fractures or serious injuries, see a doctor. This guide is for situations where you need a comfortable, custom finger stabilizer and want to build it yourself.

Scanning your hand

You have two paths: a phone scan for rough reference geometry, or calipers for precise measurements. For best results, use both.

Phone scanning apps

iPhone LiDAR (Pro models) gets you about ±1cm accuracy on objects larger than 10cm. That sounds precise until you realize a finger is 15–20mm wide. LiDAR alone won't capture the detail you need.

Photogrammetry mode is better for small objects. Polycam's photo mode achieves mean absolute deviations below 3mm for diameter measurements, with relative errors under 5%. That's workable as a starting reference. Scaniverse (free, by Niantic) offers similar photogrammetry capture. Reduce the LiDAR range setting to roughly your hand size for improved small-object results.

The process: hold your hand still against a contrasting background, move the phone slowly around it for 40–60 seconds, and export as STL. Then take caliper measurements of the actual finger for verification. Don't trust the scan dimensions alone for anything that needs to fit within a millimeter.

Professional handheld scanners (Artec Eva, EinScan Pro) achieve 0.05–0.1mm accuracy. That's 30 to 200 times more precise than a phone. If you're doing this regularly or for others, the investment changes the game. For a one-off personal splint, the phone scan plus calipers approach works.

The practical workflow

1. Scan the hand using photogrammetry mode (more accurate than LiDAR for small objects)
2. Export as STL or OBJ
3. Import into Meshmixer for mesh cleanup: remove noise, fill holes, smooth
4. Take caliper measurements of the finger at key points: joint widths, circumference, segment lengths
5. Use the cleaned mesh in your CAD tool as a visual reference, not as a dimensionally accurate model

Modeling the splint

A published workflow using Meshmixer demonstrated that medical professionals with minimal 3D modeling experience could learn the process in under four hours. Once trained, design time dropped to about 15 minutes per splint. That's the benchmark to aim for.

Software options

Meshmixer (free, from Autodesk) is the best starting point for direct mesh manipulation. Import your scan, use Surface Offset to create a 2mm shell around the finger geometry, then Plane Cut to trim the splint boundaries. The Remesh tool generates clean geometry if you want to add voronoi ventilation patterns. Boolean operations let you punch holes for airflow and strap attachment points.

Fusion 360 (free for personal use) is better when you need parametric precision. Import the scan mesh as a reference body, then build solid geometry around it. Reduce the mesh to under 100,000 facets in Meshmixer or Blender before bringing it into Fusion, or the software bogs down.

Blender handles complex mesh operations better than either, but has a steeper learning curve. Good for voronoi pattern generation and organic surface modeling if you already know the software.

Design steps

Import and clean the scan mesh. Create a 2mm offset shell (this becomes the splint wall). Trim to the desired splint shape along the finger. Add ventilation holes, balancing breathability against structural rigidity. Design retention features: holes for velcro straps, snap clips, or if you're printing in TPU, integrated living hinges.

Expect 2–4 hours for your first splint if you have basic CAD skills. That drops to 15–30 minutes once you've established a workflow. Budget for 2–3 print-and-test iterations to nail the fit.

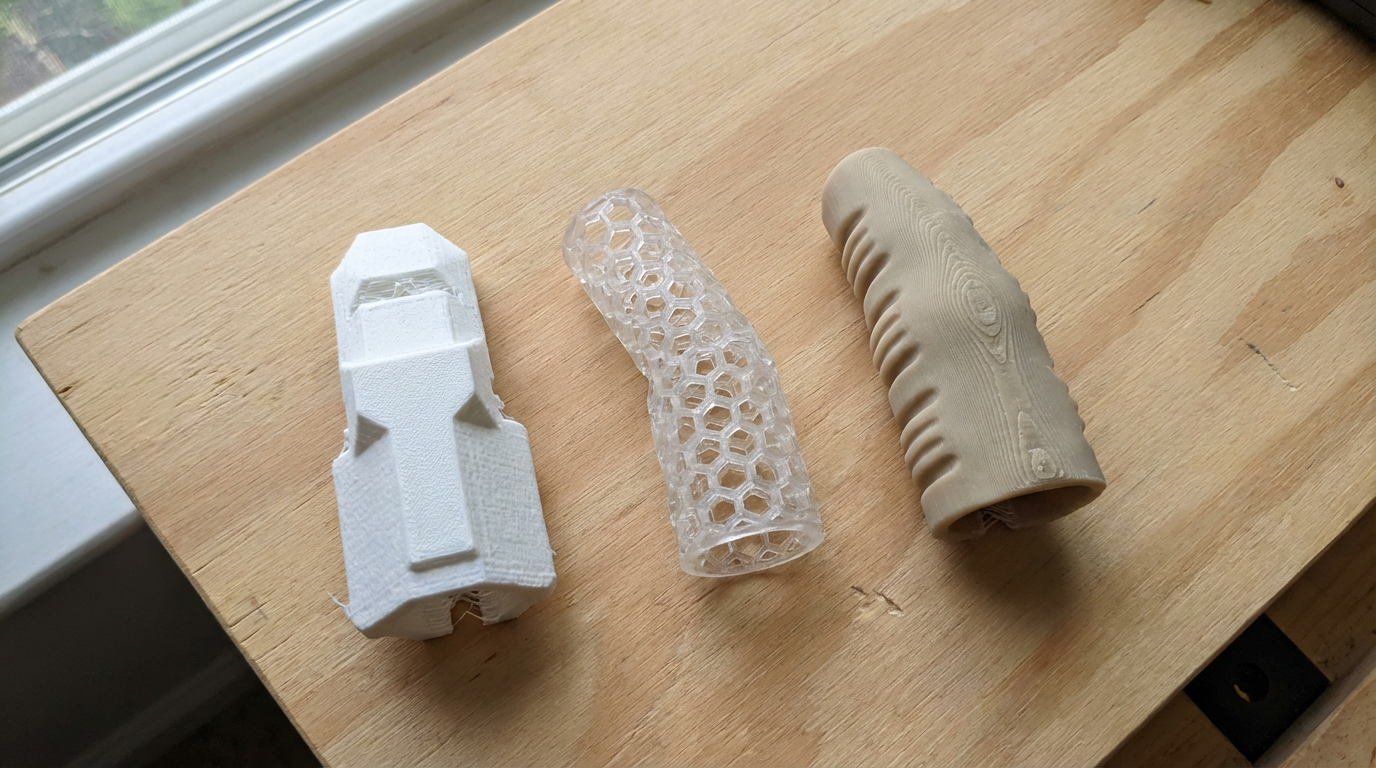

Choosing a material

Material choice depends on whether you need rigid immobilization or flexible support. Here's how the options compare, based on published testing and community experience.

PLA: the practical default

PLA's glass transition temperature of 60–65°C is actually an advantage here. A heat gun on low or a hot water bath at 60°C makes PLA pliable for fine adjustments after printing. Hold the softened splint against the finger for 30 seconds, let it cool, and it retains the new shape. This heat-forming step closes the gap between "close enough" and "perfect fit."

The downside: PLA is brittle under impact. That randomized trial I mentioned earlier reported two PLA splints that partially broke after 26–37 days of daily wear. For short-term use or nighttime wear, PLA works. For a splint that needs to survive months of active use, look at PETG or nylon.

For standard rigid splints, PLA Basic handles this well. It prints predictably and the tolerances stay tight, which matters when you're trying to match finger geometry.

TPU for flexible splints

A 2026 study in Scientific Reports compared TPU and PLA orthoses for thumb joint stabilization. TPU scored higher on patient satisfaction for short-term wear. The flexibility makes it more comfortable against skin, and it absorbs minor impacts instead of cracking.

TPU prints slowly: 20–30mm/s is typical. It needs a direct drive extruder, not a Bowden tube setup. The TPU 95A HF is formulated for higher flow rates, which helps compensate for the slower speeds. If you're building a two-part splint (rigid outer shell plus soft inner liner), TPU for the liner against skin makes a real difference in comfort.

Nylon for durability

Nylon won't snap like PLA and won't crack under repeated flex cycles. It's the best choice for a splint that needs to last months of daily wear. The tradeoff: it requires a heated chamber (50–60°C minimum) and the filament must be dried before printing. On a printer with a heated enclosure like the Plus4 at 65°C, nylon prints reliably. Without an enclosure, expect warping and poor layer adhesion on anything beyond small parts.

Print settings for splints

For PLA, 80–150mm/s outer walls gives good surface quality. TPU needs 20–30mm/s. A typical finger splint weighs about 20g and prints in 30–90 minutes depending on size and settings. That's fast enough to iterate multiple times in an afternoon.

Post-process support remnants with 220–400 grit sandpaper on any skin-contact surface. A quick pass with a heat gun can also smooth rough spots on PLA without affecting dimensions. Understanding how to make 3D prints structurally sound matters here because a splint that snaps is worse than no splint.

Fitting, iteration, and heat forming

The first print almost never fits perfectly. That's expected and fine. The iteration speed is what makes this approach work.

First fit check

Slide the splint on. Check for pressure points where the material digs into skin. Check for gaps where it should be snug. Mark problem areas with a marker directly on the print.

Heat forming PLA

Submerge the PLA splint in 60–65°C water for 15–20 seconds. It becomes pliable enough to press against the finger and hold for 30 seconds while it cools. This works for minor adjustments: opening up a tight spot, closing a gap, adjusting the curve. For anything more than 2–3mm of change, modify the model and reprint.

Keep the heat gun approach controlled: low setting, held 15–20cm away, keep moving. Focusing on one spot will melt through a thin splint wall. The hot water method gives more uniform results for small parts like finger splints.

Common adjustments between iterations

If too tight: increase the offset distance by 0.3–0.5mm in Meshmixer. If too loose: decrease offset by the same amount. If the edges dig into skin: add 1mm chamfers or fillets to all edges in your model. If ventilation isn't enough: increase hole diameter or add more openings, watching that you don't compromise structural integrity at stress points.

For anyone getting into custom-fitted TPU projects, the guide to printing with TPU covers flex settings and direct-drive tuning that apply to splints too. And the same scan-to-CAD skills transfer to flexible cosplay armor and other body-conforming prints.

Open-source resources

You don't have to start from scratch. The e-NABLE network has roughly 40,000 volunteers across 100+ countries, delivering 3D-printed prosthetic devices free of charge. Their open-source hand designs (Phoenix Hand, Kinetic Hand) are a masterclass in printable medical devices.

On Printables, parametric finger splint designs let you input your measurements and generate a customized STL without touching CAD software. OpenSCAD-based generators handle the D and PIP joint geometries with adjustable parameters for joint angles, segment lengths, and finger widths.

The broader space of scanning and printing custom-fit parts uses the same workflow whether you're building a splint or a carbon fiber replacement bracket. Scan, reference, model, iterate. The tools are the same; only the material and application change.
