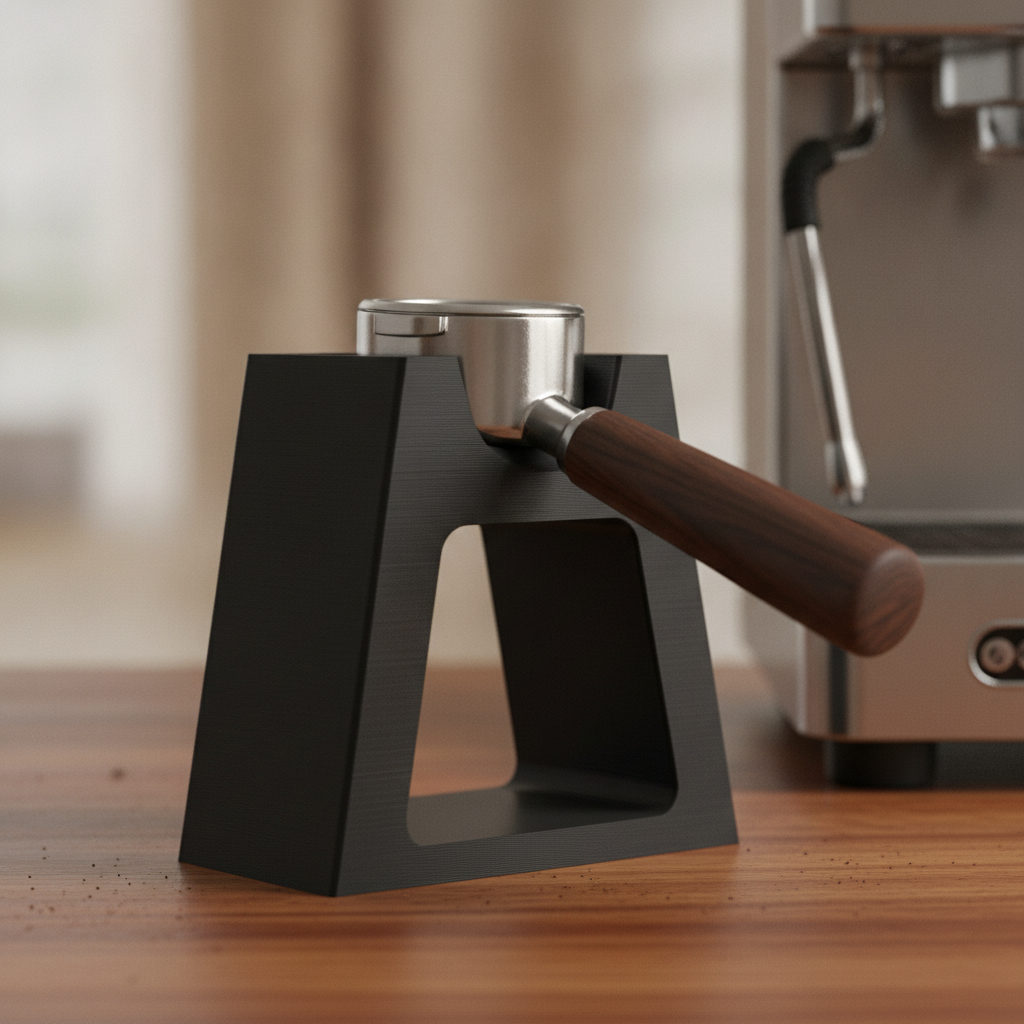

Precision Fitting: 3D Printing Custom Portafilter Stands

Precision Fitting: 3D Printing Custom Portafilter Stands

Achieving a snug, scratch-free fit for coffee portafilters requires high dimensional accuracy. For the serious coffee enthusiast, the transition from hobbyist tinkering to professional-grade functional printing is often marked by the realization that "close enough" is not sufficient for high-performance barista tools. A portafilter is a heavy, precision-machined instrument—often weighing over 500g of solid brass and steel—and it demands a stand that matches its industrial pedigree in both stability and tolerance.

In this guide, we explore how to calibrate your FDM (Fused Deposition Modeling) workflow for the tight tolerances needed in barista-grade tool stands. We will address material selection for heat-prone environments, CAD-level compensation for material shrinkage, and the slicer settings that differentiate a loose, rattling stand from a precision-engineered tool.

Material Science for the Espresso Station

The environment surrounding an espresso machine is uniquely challenging for 3D-printed polymers. High ambient heat from boilers, frequent exposure to moisture, and the mechanical stress of repeated tamping create a "perfect storm" for material failure.

The Pitfall of Standard PLA

A common mistake we observe in the community is the use of standard PLA for stands placed near espresso machine boilers. While PLA Matte Basic is excellent for display models or dry bean cellars due to its elegant finish and ease of printing, it has a low glass transition temperature—typically around 55°C to 60°C. According to the Bluefield University 3D Printing Filament Textbook, PLA is prone to warping under even moderate thermal stress. Near a boiler, the ambient heat can cause "creep" over time. Under the heavy weight of a brass portafilter, a PLA stand may slowly deform, leading to a loss of that precision fit you worked so hard to achieve.

Engineering-Grade Alternatives

For functional stands, experienced makers prioritize materials with higher thermal stability. PETG-Tough Filament offers a significant step up, with a higher glass transition temperature and improved impact resistance. However, for the ultimate in dimensional stability and heat resistance, ABS-based materials are the industry standard.

ABS Rapido Filament is designed for high-speed, high-strength applications, providing the durability needed for the daily rigors of a coffee station. For those seeking industrial-grade performance, ABS-GF25 Filament (Glass Fiber reinforced) offers even greater rigidity and reduced shrinkage. This aligns with research published in ScienceDirect regarding the use of reinforced polymers to create high-strength, lightweight industrial structures.

The Geometry of Precision: CAD Clearances and Shrinkage

A "snug fit" is a moving target in 3D printing. Because thermoplastics shrink as they cool, a hole designed at exactly 58mm in CAD will almost always result in a portafilter that won't fit.

The 0.2mm Radial Rule

For a standard 58mm portafilter, a 0.2mm to 0.3mm radial clearance in the CAD model is the industry "rule of thumb" to account for FDM tolerances. This means if your portafilter diameter is 58.0mm, your CAD model’s internal diameter should be 58.4mm to 58.6mm. This clearance provides enough room for the part to slide in without friction while remaining tight enough to prevent rattling.

Stability and the 1.5:1 Ratio

Portafilters are inherently top-heavy. If the stand is too narrow or too tall, the weight of the handle can cause the entire assembly to tip, especially during the tamping process. To ensure safety and functionality, we recommend a base-to-height ratio of at least 1.5:1.

Slicer-Level Adjustments for Barista Tools

When a print doesn't fit, the instinctive reaction is to scale the entire model up or down by 1% or 2%. However, this is often a mistake. Scaling changes every dimension, including the height and the thickness of the walls, which can lead to new assembly issues.

Hole Horizontal Expansion

Instead of scaling, use the "Hole Horizontal Expansion" setting (sometimes called "XY Size Compensation" for internal features). This setting specifically adjusts the diameter of holes without affecting the outer dimensions of the part. If your 58mm portafilter is slightly too tight, applying a positive value (e.g., 0.1mm) in this setting will widen the internal cavity while keeping the footprint of the stand identical.

This approach is much more effective for calibrating fits, as discussed in our guide on Why Your 3D Printed Knobs Don’t Fit the Shaft Properly. By isolating the adjustment to the "fit" area, you maintain the structural integrity and external aesthetics of the design.

Managing Z-Axis Tolerance

While XY precision is critical for the diameter, Z-axis precision is vital for the "lugs" (the ears) of the portafilter. If the slots for the lugs are too tight, you risk scratching the chrome finish of your portafilter. We recommend using a slightly larger vertical gap (0.4mm to 0.5mm) for the lug channels. This ensures that even with slight "elephants foot" on the first few layers or minor Z-seam blobs, the portafilter will lock in smoothly.

Advanced Considerations: Hygiene and Safety

While a portafilter stand does not typically come into direct contact with the coffee grounds being brewed, it is part of the food preparation environment.

Surface Porosity

3D prints are inherently porous due to the layer-by-layer deposition process. In a kitchen, these microscopic gaps can trap coffee oils and moisture, potentially leading to bacterial growth over time. According to the PMC Review on 3D Printing Materials, surface finish is a critical limitation for medical and food-adjacent applications.

To mitigate this, consider post-processing your stands. For ABS parts, vapor smoothing with acetone can fuse the layers, creating a glass-smooth, non-porous surface that is easy to wipe clean. For PETG, a food-safe epoxy coating can provide a similar protective barrier.

Weight and Friction

A lightweight plastic stand can slide across a granite or wooden countertop. To increase the "premium" feel and functional stability, many makers design a hollow cavity in the base of the stand to be filled with lead shot or sand during the printing process (using a "Pause at Height" command). Adding silicone or TPU feet to the bottom of the stand will also prevent sliding and protect your countertop from scratches.

Precision as a Standard

Transitioning from hobbyist printing to creating professional barista tools requires a shift in mindset. It is about moving from "printing a file" to "engineering a solution." By selecting materials like ABS Rapido Filament that can withstand the heat of a boiler, and applying CAD clearances of 0.2mm to 0.3mm, you ensure that your custom gear performs as well as it looks.

For more insights on achieving the perfect fit for functional parts, explore our related guides on Snap-Fit Clips and Latches or solving Loose Pivot Points in 3D Printed Repairs.

Disclaimer: The information provided in this article is for informational purposes only. 3D printed parts intended for use in a kitchen environment should be carefully evaluated for heat resistance and hygiene. Always consult material safety data sheets (MSDS) and ensure that your printing environment is well-ventilated, especially when working with materials like ABS. This content does not constitute professional engineering or food safety advice.
